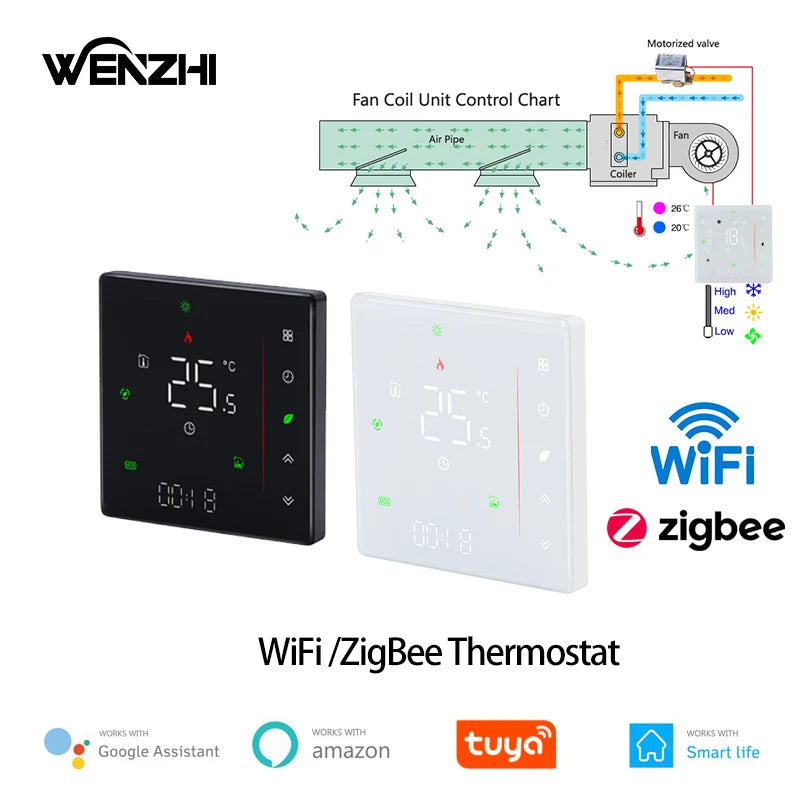

Zigbee/Wifi Air Conditioning Thermostat Fan Coil Unit Home Cooling/Heating Pipe Temperature Controller Tuya Smart Life Control

Note: When you purchase the ZigBee version, BAC006 and 003 use the same tuya PID. Therefore, the model in ZigBee2mqtt will be displayed as BAC 003. We reject any return request initiated for this reason. If you mind, please do not purchase!

Package List

Thermostat 1pc
Screws 2pc
User Guide 1pc
Wall plate 1pc
QC Passed 1pc

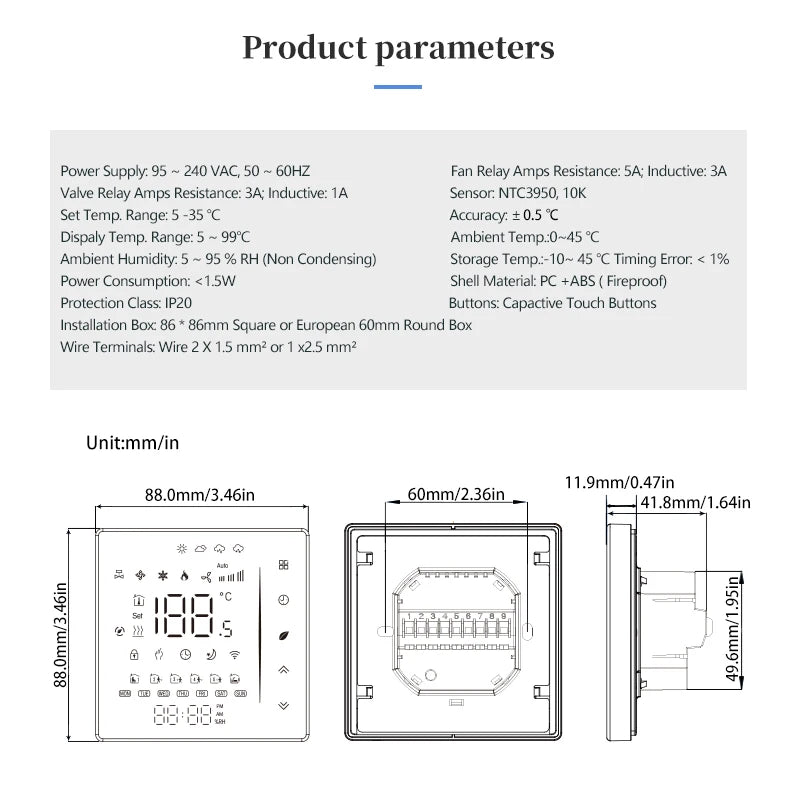

TECHNICAL DATA

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Set Temp. Range: 5 -35 ℃
Accuracy: ±0.5 ℃
Dispaly Temp. Range: 5 ~ 99℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45 ℃ Timing Error: < 1%
Power Consumption: <1.5W
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²

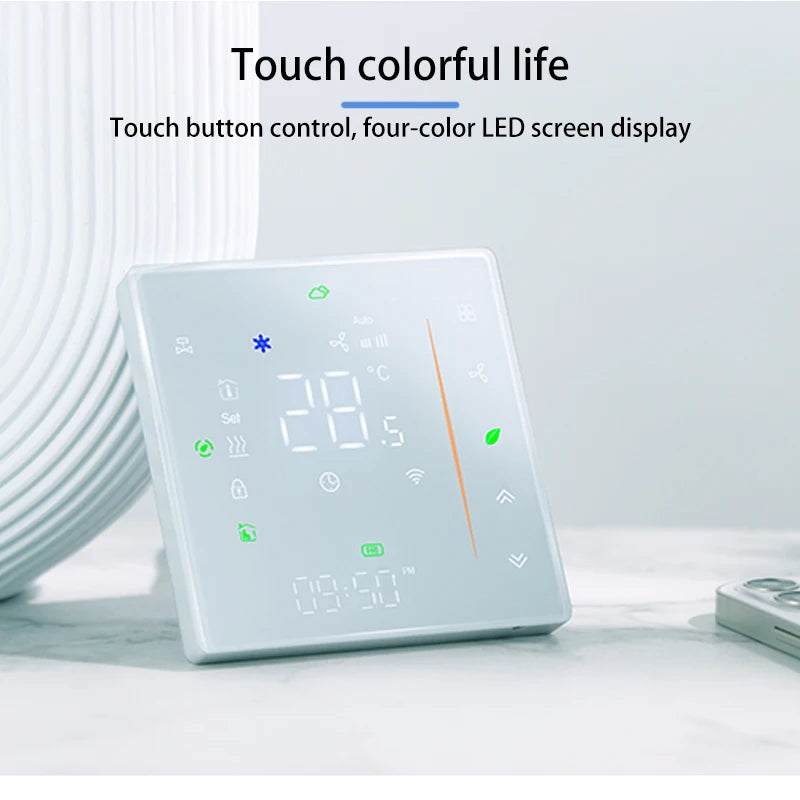

Buttons: Capactive Touch Buttons
